UHMWPE Outrigger Pads

    More Durable & Stronger than Timber Pads

    Heavy duty outrigger pads is made of UHMWPE, it is tough, Longlasting and Durable. It is a high load capacity outrigger crane pad with a large vertical load bearing capacity.

    UHMWPE plastic outrigger pads are used to support vehicles and cranes without warping, splintering , bending or any other damage.

    If you need customization, please contact whatsapp: (86)15343727504

    Email : info@syuhmwpe.com

Product Show

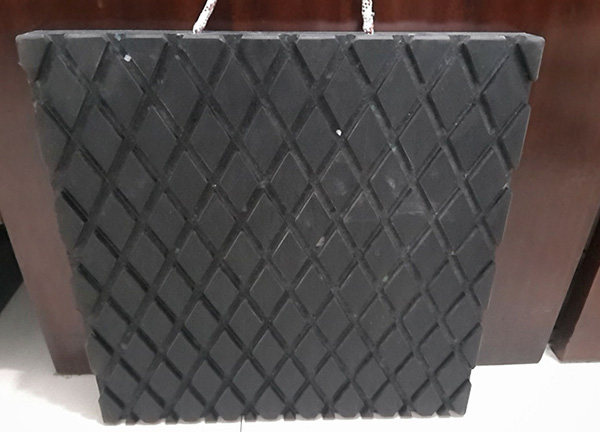

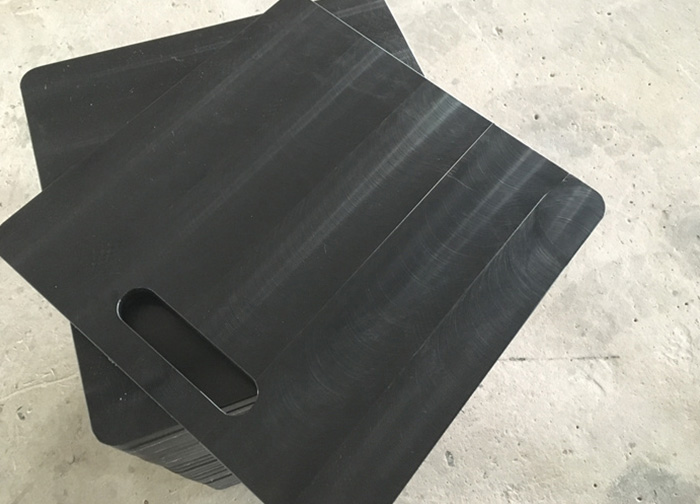

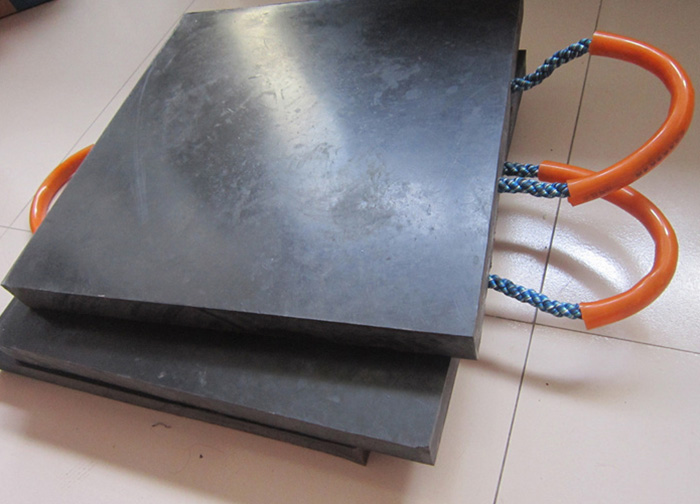

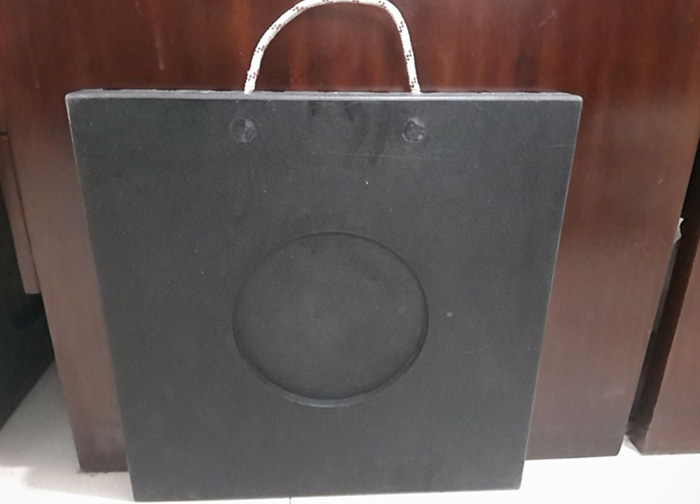

  • outrigger pad02
  • outrigger pad03
  • outrigger pad04
  • outrigger pad 05
  • outrigger pad 06
  • outrigger pad 08
  • outrigger pad 09
  • outrigger pad 10
  • outrigger pad 11
  • outrigger pad 12

An outrigger pad is a system that will ensure no breakages occur, and the integrity of the ground is preserved. In a similar situation, work is often carried out on top of ground containing utilities like water pipes or power cables. If damaged, the costs of replacing these key items would be huge but outrigger pads will ensure you never have to face that bill. You can use them on their own, or as part of an integrated engineered protection system.

Either way, you can work without that worry.

Outrigger pads are efficient and cost-effective, providing a stable load platform and a cushioned support area for heavy loads, while also preventing surface damage. They have a high resistance to vertical pressure and their unique design allows each individual pad to adapt to the contours of the ground, returning to its original shape once the job is finished.

Our outrigger pads are made from 100% ultra high molecular weight polyethylene, which means they are hard-wearing, they will not splinter and, under normal use, have a greater lifespan than other pads on the market. They are also chemical, oil, and water-resistant, so they can be deployed in all types of weather conditions.

Despite being incredibly strong and durable, outrigger pads have a clever lightweight design which makes them easy to transport, store and install. They are available in various sizes to suit your project’s requirements and they can also be customised to reflect your company branding. Contact us for details.

OUTRIGGER PAD DIMENSIONS:

Thickness(mm) Specification(mm) Weight(kgs) Load-bearing(tons)
25 500*500 6.25 55
600*600 9 60
800*800 16 81
1000*1000 25 93
1200*1200 36 130
Dia.800 12.5 78
Dia.1000 20 91
Dia.1200 28 110
40 500*500 10 56
600*600 14.4 61
800*800 25.6 82
1000*1000 40 94
1200*1200 57.6 131
Dia.800 20 80
Dia.1000 32 92
Dia.1200 45 130
50 500*500 6.25 58
600*600 9 62
800*800 16 85
1000*1000 25 98
1200*1200 36 140
Dia.800 12.5 83
Dia.1000 20 95
Dia.1200 28 137
80 800*800 38.4 86
1000*1000 60 99
1200*1200 86.4 133
Dia.800 30 84
Dia.1000 48 96

Get In Touch

For more details or to talk to our team about which size is best suited to your application, please call us on 86 15343727504 or email info@chinaupe.com.
